Specifications:

• Fully brass mixer with stainless steel 304 frames.
• External dual-direction mixer (hot/cold) suitable for use as a shower mixer/bathtub or bidet mixer.
• Built-in movable spout.
• Built-in holder (for showerhead or bidet).
• Hot water return installed on the hot water line (non-return valve).
• Maximum temperature: 95 degrees Celsius.
• Recommended temperature: 4 to 80 degrees Celsius.
• Maximum test pressure: 15 bars.
• Compatible with Hatch Shattaf. and Hatch Shower head

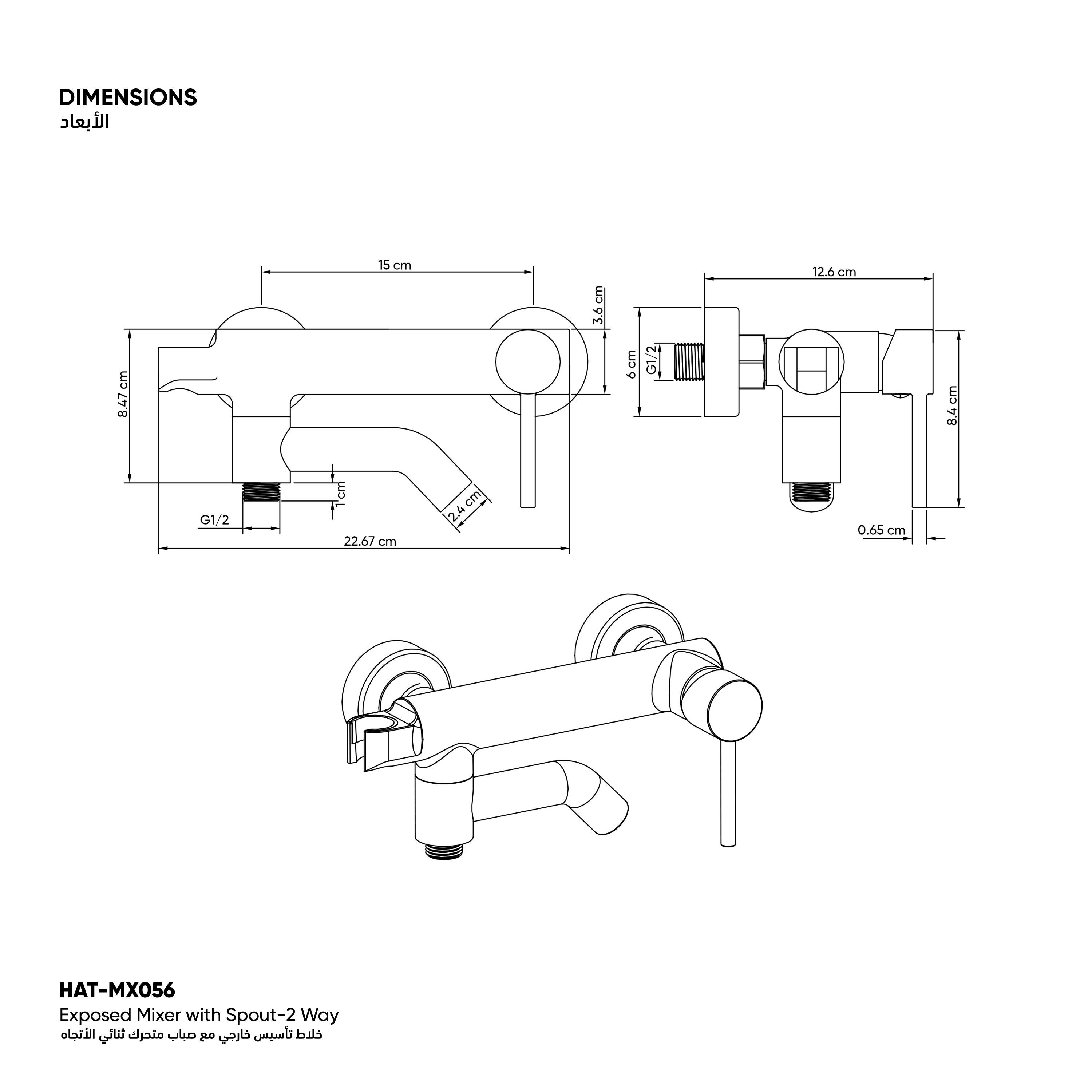

Product dimensions and weight:

• L 8.4 cm x W 22.6 cm x H 12.6 cm (1.358 kg).

Contents of the box:

• External brass dual-direction mixer (hot/cold)
• Brass movable spout for controlling water direction
• Built-in holder (for shower head or bidet)
• 2 circular stainless steel 304 mixer frames (frames)
• Areator, easy-to-clean and maintain filter
• 2 silicone gaskets
• 2 additional gaskets (rubbers)
• Hot water non-return valve
• 2 1/2 inch installation connectors (male/female) made of stainless steel 304
• Plastic key for cleaning the faucet filter
• Key for anchoring (to remove the faucet control arm for maintenance)
• Installation instructions booklet

Installation method:

• External wall-mounted installation.
• For bidet mixer installation, it is recommended to establish at a height of 60 to 65 cm from the finishing level.
• For shower/bathtub mixer installation, it is recommended to establish at a height of 90 cm from the finishing level.
• The distance between the center of the water outlet and the source is 15 cm.

Note: The box contents include only the external mixer and its accessories and require complementary items as desired.

Warranty:

• 7-year warranty against manufacturing defects.

Made in China by Hatch.

Note:

Please do not expose the product to chemicals such as acids, bleach, or dioxins - Please clean the product with soft tools and avoid using harsh tools (such as wire brushes or sharp objects) that may scratch the product.
